IMG-4312D+-D4G
Industrial FirstNet approved LTE Gateway with WIFI4, 2FE and 1 RS-232/422/485 port
商品介紹
IMG-4312D+-D4G LTE cellular M2M Gateway is an innovative product for Cloud, Internet of Things and Industry 4.0 applications. It is a perfect choice for remote secured data collection from the factory floor (PLCs, machines, networking devices) and environmental sensors (temperature, humidity, noise, pollution, vibration etc.) as well as for serving control commands coming from Cloud Platforms for changing end-devices status.
Connectivity: IMG-4312D+-D4G Gateway uses LTE module which supports 2G/3.5G/4G technologies. The user has a possibility to choose between three different communication interfaces to connect his end-device: Fast Ethernet ports, Serial port and Wireless Wi-Fi connectivity with 150Mbps link speed. With Modbus RTU and TCP protocols the Gateway can easily communicate with any compatible device to poll and write all kind of data types. IMG-4312D-D4Gcan also transfer data to 5 host PCs simultaneously for backup purposes. In addition the gateway supports all common VPN protocols (OpenVPN, PPTP, IPSec) and can establish secured tunneling connection between clients and servers.
Cloud Platforms connection: IMG-4312D+-D4G supports all common lightweight Cloud communication protocols: MQTT including Sparkplug B version for payload and topic definition, CoAP (Constrained Application Protocol) and LWM2M (Lightweight M2M). It is fully compatible with ORing PaaS Cloud but it also makes the Gateway a universal and flexible solution for any existing Cloud Platform integration.
Thanks to ORing branded Open Gateway software feature it simplifies to maximum IoT solution deployment. Connecting big variety of end-devices, very often with different communication interfaces, to different Cloud Platforms has never been so easy. Open Gateway protocol converter from a very simple and user-friendly web-based configuration interface turns the gateway into a transparent man in the middle between Modbus field devices and MQTT/CoAP/LWM2M servers. The user has a possibility to define and shape the data format before it is sent to the Cloud for secured storing, analysis and Dashboard or HMI SCADA visualization.
產品特色
- FirstNet approved device and AT&T/Verizon certified
- Support LTE Cat. 4 with up to 150Mbps downlink and 50Mbps uplink data rates
- Support dual mini SIM card slot
- Support 2x 10/100Base-T(x) Ethernet ports
- Support 1x RS-232/422/485,1x DI and 1x DO
- IEEE 802.11 b/g/n WLAN Wi-Fi interface with up to 150Mbps bandwidth
- Support ORing Open Gateway (protocol converter) software feature for user-friendly IIoT deployment
- Support ORing Cloud Wizard feature for easy and quick step-by-step device provisioning
- Support Modbus TCP/RTU industrial protocols
- Support MQTT/MQTT Sparkplug B/CoAP/LWM2M Cloud protocols
- Support VPN for secured network connection (OpenVPN, PPTP, IPSec)
- Support NAT (Network Address Translation) and Firewall features
- Event warning by System logs, SNMP Trap, E-mail and SMS
- Redundant 12~48VDC power input
- PoE power input available with 1kV isolation
- DIN Rail and Wall mounting types
- Support OpenWRT SDK for project customization
實體連接埠 | |
|---|---|
| 10/100Base-T(X) RJ45連接埠 | 2 |
| PoE P.D. 連接埠 | P.O.E.Present at ETH1 Power Device (IEEE 802.3af): IEEE 802.3af compliant input interface Over load & short circuit protection Isolation Voltage: 1000 VDC min. Isolation Resistance : 108 ohms min |
行動網路介面 | |
|---|---|
| SIM卡插槽 | 2 |
| 行動網路標準 | GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA /LTE |
| 頻段選擇 | America (US grade) LTE: FDD:1900(B2)/1700(B4)/850(B5)/700(B12)/700(B13)/700(B14)/1700(B66)/600(B71) MHz UMTS/HSDPA/HSUPA/HSPA+: 1900/1700/850 MHz Europe (EU grade) LTE: FDD:2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz TDD:TDD:2600(B38)/2300(B40)/2500(B41) MHz UMTS/HSDPA/HSUPA/HSPA+: 2100(B1)/900(B8) MHz GSM/GPRS/EDGE: 900/850 MHz Taiwan (TW grade) LTE: FDD:2100(B1)/1900(B2)/1800(B3)/1700(B4)/850(B5)/2600(B7)/900(B8)/700(B28) MHz TDD:2300(B40) UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+: 2100(B1)/1900(B2)/850(B5)/900(B8) MHz GSM/GPRS/EDGE: B2/B3/B5/B8 China (CN grade) LTE: FDD:2100(B1)/1800(B3)/900(B8) MHz TDD:2600(B38)/1900(B39)/2300(B40)/2500(B41) MHz TDSCDMA: B34/B39 WCDMA: 900/2100 MHz CDMA 1x/EVDO: 800(BC0) MHz GSM: 900/1800 MHz |
| 天線接頭 | 2 x SMA Female |
LED 指示燈 | |
|---|---|
| WIFI（WLAN）指示燈 | 1 x LED, Green: WIFI Link /ACT |
| Power indicator | 3 x LEDs, PWR 1(2)(PoE) / Ready: Green On: Power is on |
| 串列 TX/RX 指示燈 | Red: Serial port is receiving data Green: Serial port is transmitting data |
| 10/100Base-T(X) RJ45連接埠指示燈 | 2 x LEDs, Green for port Link/Act at 100Mbps. |
電源 | |
|---|---|
| 耗電量（一般） | 5.5W |
| 備用輸入電源 | Dual DC inputs. 12-48VDC on 4-pin terminal block |
| 過載保護 | Present |
| 反極性保護 | Present on terminal block |
WLAN 介面 | |
|---|---|
| 天線接頭 | 1 x RP-SMA Female |
| 調變 | IEEE802.11b: CCK/DQPSK/DBPSK IEEE802.11g: OFDM IEEE802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
| 頻段 | America / FCC: 2.412~2.462 GHz (11 channels ) Europe CE / ETSI: 2.412~2.472 GHz ( 13 channels ) |
| 傳輸率 | 802.11b: 1/2/5.5/11 Mbps 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11n(40MHz): UP to 150 Mbps |
| 發射功率 | 802.11b: 19dBm ± 1.5dBm 802.11g: 17dBm ± 1.5dBm 802.11n(2.4G@20MHz): 16dBm ± 1.5dBm 802.11n(2.4G@40MHz): 14dBm ± 1.5dBm |
| 接收器靈敏度 | 802.11b: -90dBm ± 2dBm@1Mbps 802.11g: -72dBm ± 2dBm@54Mbps 802.11n(2.4G@40MHz,MCS7): -68dBm ± 2dBm |
| 加密安全性 | WEP: (64-bit ,128-bit key supported) WPA/WPA2 :802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption |
通訊協定支援 | |
|---|---|
| 通訊協定 | ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, DDNS, PPPoE |
串列介面 | |
|---|---|
| 接頭 | DB9 x 1 |
| 操作模式 | RS-232/422/485 |
| 串列鮑率 | 110 bps to 115.2 Kbps |
| 資料位元 | 7, 8 |
| 奇偶檢查位元 | odd, even, none, mark, space |
| 停止位元 | 1, 1.5, 2 |
| 流量控制 | XON/XOFF, RTS/CTS, DTR/DSR |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
物理特性 | |
|---|---|
| 外殼 | IP-30 |
| Dimensions (mm) | 45(W)x80.6(D)x95(H) mm (1.77 x 3.17 x 3.74 inch) |
| 重量（克） | 395 |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85°C (-40 to 185°F) |
| 作業溫度 | -25 to 70°C (-13 to 158°F) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 5 years |
下載 |
| ||||
|---|---|---|---|---|---|
安規 | ||
|---|---|---|
| RF | EN 301 489-1/-17(2.4G), EN 300 328(2.4G), EN 301 511(2G), EN 301 908-1(3G/4G), FCC Par 15C(2.4G) | |
| EMC | CE EMC (EN 55024, EN 55032), FCC Part 15 B | |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B Class A | |
| EMS | EN 55024, (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP)) | |
| 震動 | IEC 60068-2-27 | |
| 自由落體 | IEC 60068-2-31 | |
| 振動 | IEC 60068-2-6 | |
| 安全性 | UL61010-1/-2-201, *ATEX, *C1D2 | |
| 其他 | 353,679 hrs | |

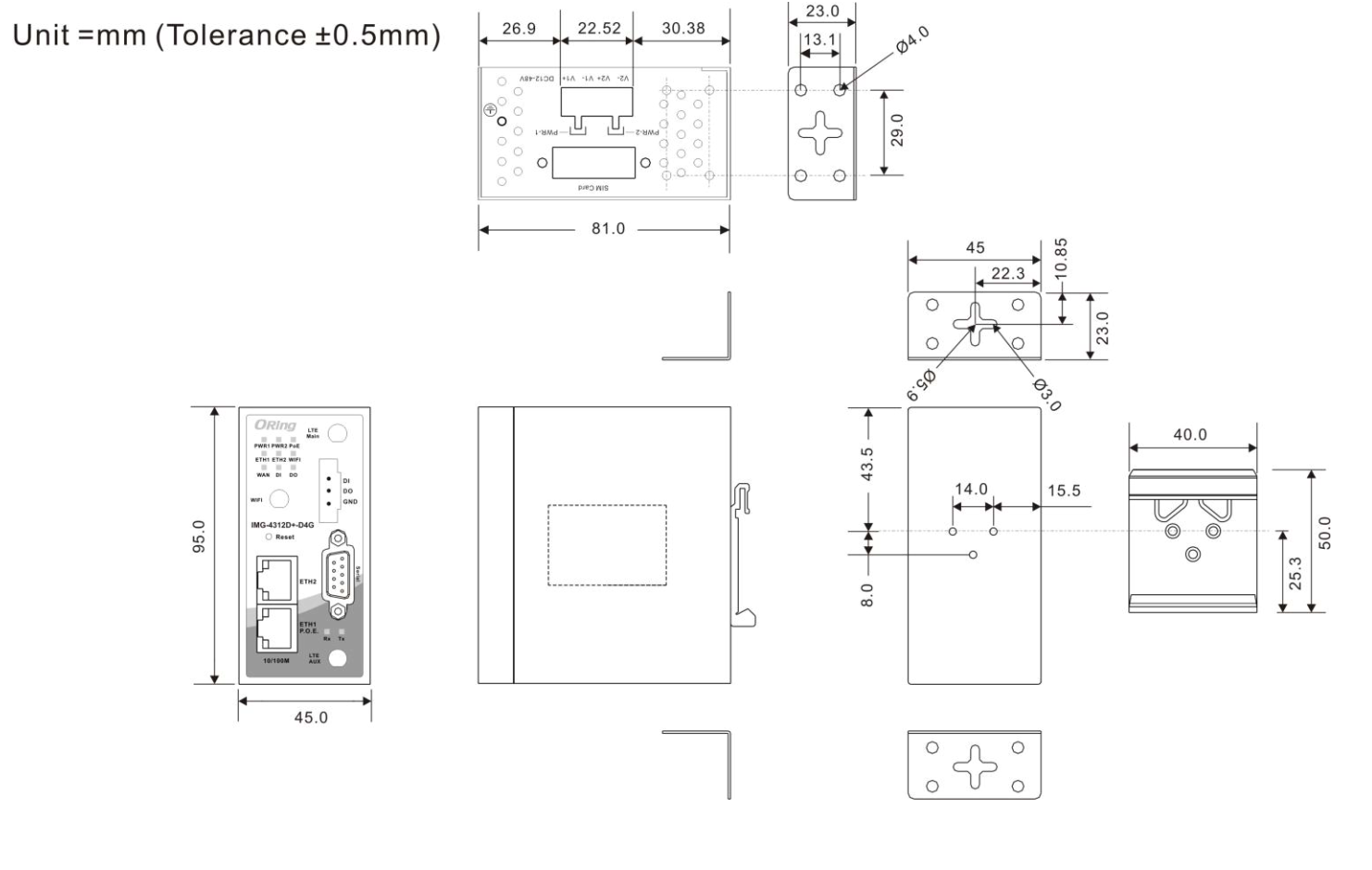

三視圖 |  |
|---|
