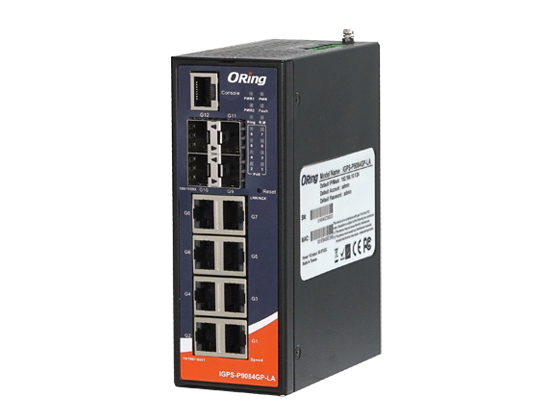

IGPS-P9084GP-LA
Industrial IEC 61850-3 12-port Managed Gigabit PoE Switch with 8G/PSE and 4G SFP socket
商品介紹
The IGPS-P9084GP-LA is a 12-port managed industrial Gigabit PoE Ethernet switch designed for power substations and other mission-critical industrial networks. Compliant with IEC 61850-3 and IEEE 1613, it features 8 Gigabit IEEE 802.3at PoE+ ports delivering up to 30W per port, with a total PoE power budget of 240W, and 4 additional 100/1000Base-X SFP ports for fiber connectivity.
To ensure reliable network communication, the IGPS-P9084GP-LA supports multiple Ethernet redundancy protocols, including O-Ring with recovery times under 20ms across up to 250 nodes, MRP, and MSTP (RSTP/STP compatible). It also supports IEEE 1588v2 time synchronization, VLAN, QoS, and SNMP-based network management. With a rugged IP30 fanless design and a wide operating temperature range of −40°C to +75°C, the switch is well suited for demanding power utility and industrial automation environments.
產品特色
- Compliant with IEC 61850-3 and IEEE 1613 standards for power substation applications
- 8 × 10/100/1000Base-T(X) IEEE 802.3at PoE+ ports, delivering up to 30W per port
- 4 × 100/1000Base-X SFP ports for flexible fiber connectivity
- Total PoE power budget of up to 240W
- IEEE 1588v2 time synchronization
- O-Ring redundancy with recovery times under 20ms across up to 250 nodes
- Supports O-Chain, IEC 62439-2 MRP, and MSTP/RSTP/STP redundancy protocols
- Intelligent PoE management with scheduled power control, alive check, and automatic reboot
- Supports IPv6, EtherNet/IP, Modbus TCP, VLAN, QoS, and IGMP snooping
- Secure network access with HTTPS, SSH, ACL, TACACS+, IEEE 802.1X, and Device Binding
- DoS/DDoS prevention and SNMPv3-based network management
- Flexible management via Web GUI, SNMP, CLI, and Open-Vision
- Syslog and SNMP Trap notifications for network event monitoring
- Configuration backup and restoration via optional DBU-01 module
- Wide operating temperature range of −40°C to +75°C
- Rugged IP30 fanless design
實體連接埠 | |
|---|---|
| Total Ethernet Ports | 12 |
| Gigabit PoE Ports | 8 x 10/100/1000Base-T(X) RJ45, 802.3at |
| Gigabit Fiber/SFP Ports | 4 x 100/1000Base-X SFP |
電源 | |
|---|---|
| 耗電量（一般） | 13.2 Watts for system only |
| PoE 輸出功率 | Per port 56V DC, 350mA. Max. 15.4 watts (IEEE 802.3af) Per Port 56V DC, 590mA. Max. 30 watts (IEEE 802.3at) |
| 接頭 | 6-pin terminal block |
| 備用輸入電源 | 50/57VDC |
| 總 PoE 輸出功率 | 240W max, 30W/per port |
| 過載保護 | Present |
物理特性 | |
|---|---|
| 外殼 | IP-30 |
| Dimensions (mm) | 54.3 (W) x 108.3 (D) x 145.1 (H) mm (2.13 x 4.26 x 5.71 inches) |
| 重量（克） | 779g |
技術 | |
|---|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) |
| MAC 表格 | 8k |
| 封包緩衝區大小 | 4Mbit |
| 優先順序佇列 | 8 |
| 處理 | Store-and-Forward |
| 交換機屬性 | Switching latency: 7 us Switching bandwidth: 24Gbps Throughput (packet per second) : 17.856Mpps@64Bytes packet Max. Number of Available VLANs: 4096 VLAN ID Range : VID 0 to 4095 IGMP multicast groups: 256 for each VLAN Port rate limiting: User Define |
| 巨型訊框 | Up to 9.6K Bytes |
| 安全功能 | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security |
| 軟體功能 | STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay SMTP Client Modbus TCP EtherNet/IPTM |
| 網路備援 | O-Ring Open-Ring O-Chain MRP MSTP (RSTP/STP compatible) |
故障接觸 | |
|---|---|
| 繼電器 | Relay output to carry capacity of 1A at 24VDC |
重置功能 | |
|---|---|
| 重置按鈕 | less than 5 sec: System reboot, greater than 5 sec: Factory default |
環境條件 | |
|---|---|
| 儲存溫度 | -40 to 85 degrees C (-40 to 185 degrees F) |
| 作業溫度 | -40 to 75 degrees C (-40 to 167 degrees F ) |
| 作業濕度 | 5% to 95% Non-condensing |
保固 | |
|---|---|
| 保固 | 5 years |
下載 |
| ||||
|---|---|---|---|---|---|
安規 | ||
|---|---|---|
| EMC | CE EMC (EN 55035, EN 55032) FCC Part 15 B | |
| EMI | EN 55032 CISPR32 EN 61000-3-2 EN 61000-3-3 FCC Part 15 B class A | |
| EMS | IEC/EN 61000-4-2 IEC/EN 61000-4-3 (RS) IEC/EN 61000-4-4 IEC/EN 61000-4-5 IEC/EN 61000-4-6 (CS) IEC/EN 61000-4-8 (PFMF) | |
| 震動 | IEC 60068-2-27 | |
| 自由落體 | IEC 60068-2-31 | |
| 振動 | IEC 60068-2-6 | |
| 安全性 | EN62368-1 | |
| 其他 | IEC 61850-3 IEEE 1613 | |
| MTBF | 602,954 hrs | |

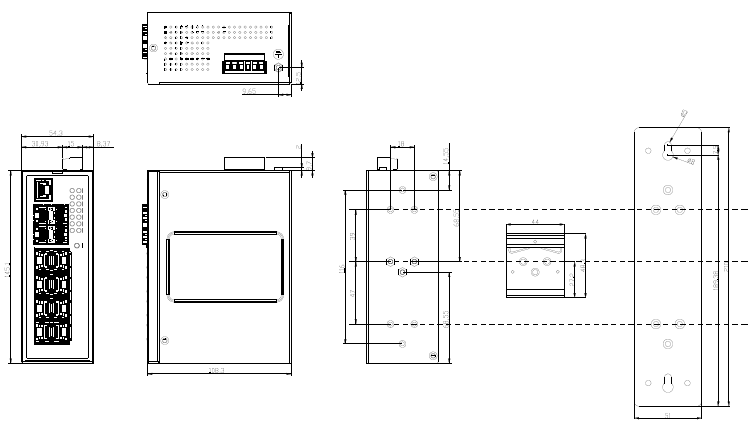

三視圖 |  |
|---|
