商品介紹
IPS-1080A is slim type unmanaged PoE switch with P.S.E. function. IPS-1080A supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IPS-1080A switch has 8X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE application.
產品特色
- Provide 8x 10/100Base-T(X) PoE ports
- IEEE 802.3at compliant PoE and total power budget is 180Watts with maximum 30Watts per port
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Warning system by relay output
- Slim type rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Industrial 8-port slim type unmanaged PoE Ethernet switch with 8x10/100Base-T(X) P.S.E.
實體連接埠 |
|---|
| 10/100Base-T(X) RJ45連接埠，具P.S.E.功能 | 8 |
LED 指示燈 |
|---|
| 電源指示燈（Power） | Green : Power LED x 2 |
| 故障指示燈（Fault） | Amber : Indicate PWR1 or PWR2 failure |
| 10/100Base-T(X) RJ45連接埠指示燈 | Upper for Lick/Act indicator, Green for port Link/Act |
| PoE 指示燈 | Lower for PoE indicator, Green for PoE power injected |
電源 |
|---|
| 備用輸入電源 | Dual DC inputs. 50~57VDC on 6-pin terminal block |
| 總 PoE 輸出功率 | 180W |
| 過載保護 | Present |
| 反極性保護 | Present |
物理特性 |
|---|
| 外殼 | IP-30 |
| Dimensions (mm) | 26.1 (W) x 94.9 (D) x 144.3 (H) mm |
| 重量（克） | 441 g |
技術 |
|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (total power budget is 180Watts with maximum 30Watts per port) |
| MAC 表格 | 1K |
| 封包緩衝區大小 | 448K bits |
| 處理 | Store-and-Forward |
安規 |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| 震動 | IEC 60068-2-27 |
| 自由落體 | IEC 60068-2-31 |
| 振動 | IEC 60068-2-6 |
| 安全性 | EN 62368-1, UL 61010-1, UL 61010-2-201 |
| MTBF | 805485 hrs |

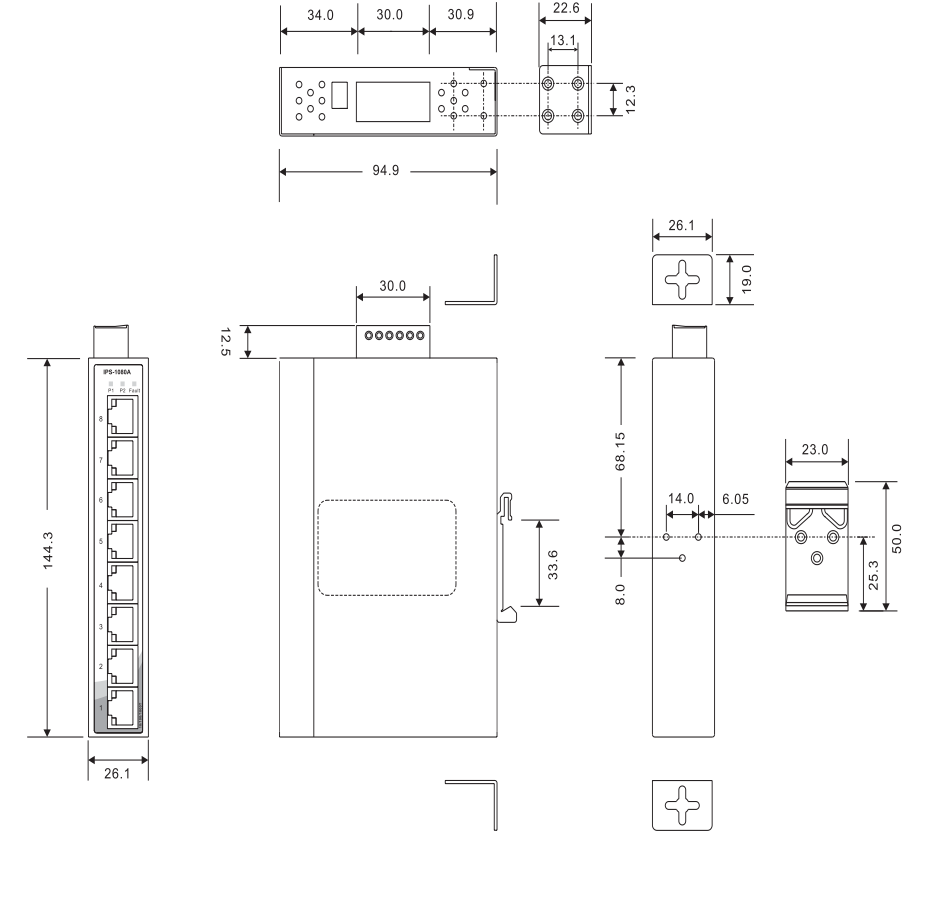

三視圖 |
|---|
 |
