商品介紹

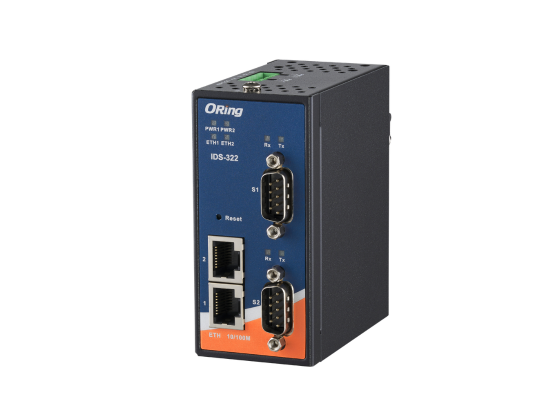

IDS-322 is an innovative secure 2 port RS-232/422/485 to 2 ports LAN secure device server with standard features of device server, such like TCP/IP interface and versatile operation modes: Virtual COM, Serial Tunnel, TCP Server, TCP Client, UDP and Modbus gateway. In addition, the Windows untility, DS-Tool, could configure multiple devices and set up the mappings of Virtual Com. On the other hand, IDS-322 can simultaneously transfer data up to 5 redundant host PCs to aovid Ethernet connection breakdown or any host PC fails. Further, IDS-322 features HTTPS, SSH, and SSL encryption to assure the security of critical data transmission.
IDS-322 supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on terminal block to guarantee a non-stop operation. With wide operating temperature, -40~70°C, and rugged IP-30 housing, IDS-322 series could operate in the harsh industrial environment. Therefore, IDS-322 is the best solution to the high demand of secure serial to Ethernet critical data communication.
產品特色
- Operating Modes: Virtual COM, Serial Tunnel, TCP Server, TCP Client, UDP
- 2x RS-232/422/485 in DB9 connector
- Support Modbus gateway feature
- Secured management by HTTPS, SSH, and IP White List
- Event Warning by Syslog, Email, SNMP trap, Relay and Beeper
- Configurable by Web-based and Windows utility (DS-Tool)
- Ethernet switch mode enable Daisy Chain
Industrial 2 secure serial port to Ethernet device server with 2xRS-232/422/485 and 2x10/100Base-T(X)
實體連接埠 |
|---|
| 10/100Base-T(X) RJ45連接埠 | 2 |
LED 指示燈 |
|---|
| Power indicator | 3 x LEDs, PWR 1(2)(PoE) /Ready:
Green On: Power is on |
| 串列 TX/RX 指示燈 | Amber: Serial port is receiving data
Green: Serial port is transmitting data |
| 10/100Base-T(X) RJ45連接埠指示燈 | Green for port Link/Act at 100Mbps. |
電源 |
|---|
| 耗電量（一般） | 3.84W |
| 備用輸入電源 | Dual DC inputs. 12-48VDC on 6-pin terminal block |
| 過載保護 | Present |
| 反極性保護 | Present on terminal block |
通訊協定支援 |
|---|
| 通訊協定 | ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP |
串列介面 |
|---|
| 接頭 | DB9 x 2 |
| 操作模式 | RS-232/422/485 |
| 串列鮑率 | 110 bps to 460.8 Kbps |
| 資料位元 | 7, 8 |
| 奇偶檢查位元 | odd, even, none, mark, space |
| 停止位元 | 1, 1.5, 2 |
| 流量控制 | XON/XOFF, RTS/CTS, DTR/DSR |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
物理特性 |
|---|
| 外殼 | IP-30 |
| Dimensions (mm) | 45 (W) x 81 (D) x 95 (H) |
| 重量（克） | 316g |
環境條件 |
|---|
| 儲存溫度 | -40 to 85°C (-40 to 185°F) |
| 作業溫度 | -40 to 70°C (-40 to 158°F) |
| 作業濕度 | 5% to 95% Non-condensing |
下載 |
|---|
| Datasheet | Version | Checksum | Release Date | Release Note | Size |
|---|
| IDS-322 Datasheet | | | 7月 06, 2023 | | 627.26 kB |
| Software | Version | Checksum | Release Date | Release Note | Size |
|---|
| IDS-322 DS-Tool | x64_V2.9c | | 7月 06, 2023 | | 2.72 MB |
|
安規 |
|---|
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| 震動 | IEC60068-2-27 |
| 自由落體 | IEC60068-2-32 |
| 振動 | IEC60068-2-6 |
| 安全性 | EN60950-1 |
三視圖 |
|---|
 |
