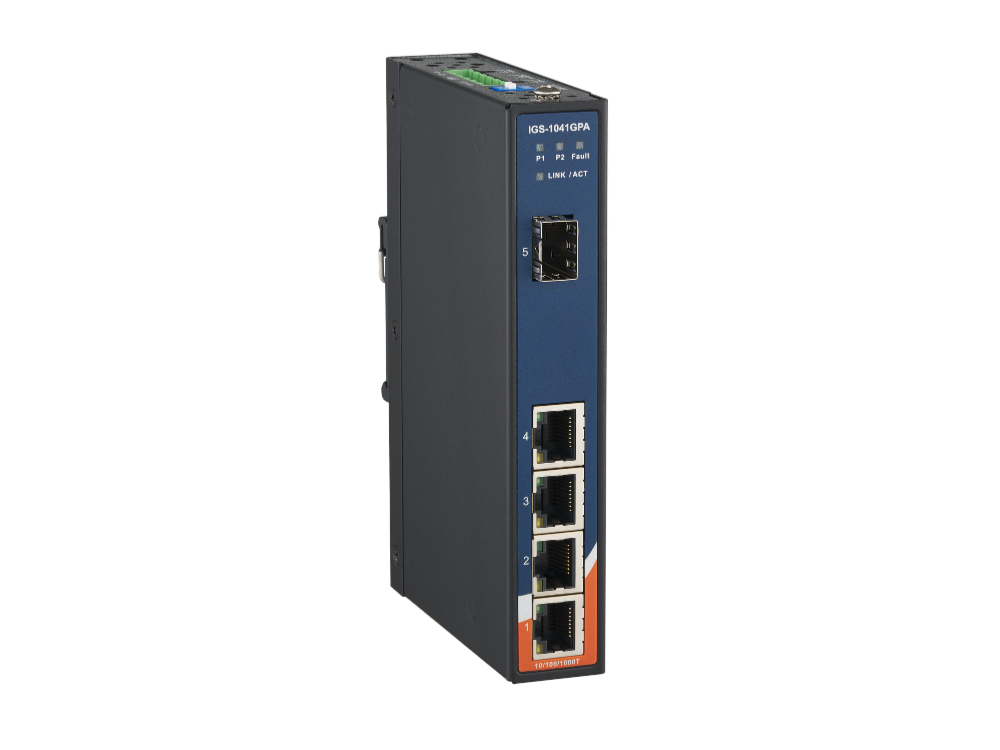

IGS-1041GPA is a unmanaged gigabit Ethernet switch with 4x 10/100/1000Base-T(X) and 1x 1000Base-X SFP socket. IGS-1041GPA supports redundant power inputs, rigid IP-30 housing and have DIP switch for enabling or disabling relay output alarm. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment.
產品特色
- 4x 10/100/1000Base-T(X) and 1x 1000Base-X SFP port
- Support Jumbo Frame up to 9K Bytes
- Hardware DIP switch to enable/disable warning function
- Rigid IP-30 slim type housing design
- DIN-Rail and wall mounting enabled
- Relay output to carry capacity of 1A at 24 VDC
Industrial Slim Type 5-Port Unmanaged Gigabit Ethernet Switch
實體連接埠 |
|---|
| 10/100/1000Base-T(X) RJ45連接埠 | 4 |
| 1000Base-X SFP連接埠 | 1 |
LED 指示燈 |
|---|
| 電源指示燈（Power） | Green: Power LED x 2 |
| 故障指示燈（Fault） | Amber: Indicate PWR1 or PWR2 failure |
| 10/100/1000Base-T(X) RJ45連接埠指示燈 | Green for Link/Act indicator.
Lower LED for speed indicator: Amber for 100Mbps, Off-light for 1G and 10Mbps |
電源 |
|---|
| 耗電量（一般） | 5Watts |
| 備用輸入電源 | Dual 12~48VDC on 6-pin terminal block |
| 過載保護 | Present |
| 反極性保護 | Present |
物理特性 |
|---|
| 外殼 | IP-30 Metal |
| Dimensions (mm) | 26.1 (W) x 94.9 (D) x 144.3 (H)mm, 1.03 (W) x 3.74 (D) x 5.68 (H) inch |
| 重量（克） | 403 g |
技術 |
|---|
| 乙太網路標準 | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control |
| MAC 表格 | 1024 |
| 封包緩衝區大小 | 1M bits |
| 處理 | Store-and-Forward |
| 巨型訊框 | 10240 bytes |
安規 |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| 震動 | IEC 60068-2-27 |
| 自由落體 | IEC 60068-2-31 |
| 振動 | IEC 60068-2-6 |
| 安全性 | EN 62368-1 (LVD), UL61010-1, UL61010-2-201 |
| MTBF | 1,861,840 hrs |
