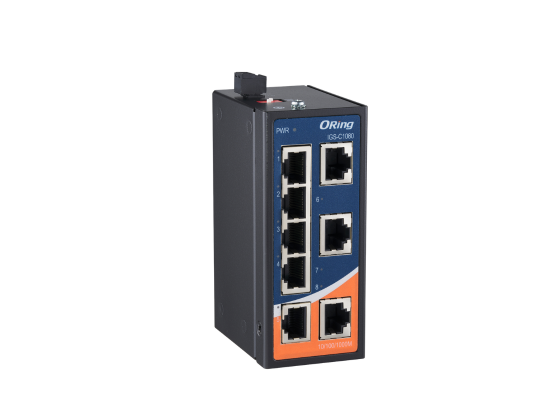

IGS-C1080-L

8GE Unmanaged Ethernet Switch


Description

The IGS-C1080-L is a compact 8-port industrial Gigabit unmanaged Ethernet switch designed for reliable network connectivity in factory automation, industrial control systems, and space-constrained installations. Featuring 8 × 10/100/1000Base-T(X) RJ45 ports, it enables straightforward integration of industrial Ethernet devices without complex network configuration.

Supporting PROFINET Conformance Class A (CC-A), IEEE 802.1p Quality of Service (QoS), and broadcast storm protection, the IGS-C1080-L helps prioritize critical network traffic and maintain stable communication in industrial environments. DIP switches allow users to configure QoS, multicast filtering, and broadcast storm protection without software-based management.

With a wide operating temperature range of -40°C to 75°C, an IP40-rated enclosure, flexible 9–60VDC / 24VAC power input, and DIN-rail mounting, the IGS-C1080-L provides a compact and practical networking solution for demanding industrial applications.

Features

  • 8 × 10/100/1000Base-T(X) RJ45 ports
  • Supports PROFINET Conformance Class A (CC-A)
  • Supports IEEE 802.1p and DSCP QoS
  • DIP switch-configurable QoS, multicast filtering, and broadcast storm protection
  • Supports IEEE 802.3x flow control
  • Wide 9–60VDC / 24VAC power input
  • Wide operating temperature range: -40°C to 75°C
  • Compact IP40 housing with DIN-rail mounting

IGS-C1080-L
Industrial 8-port Unmanaged Gigabit Ethernet Switch

Physical ports

Total Ethernet Ports8
Gigabit Ethernet Ports8 x 10/100/1000Base-T(X) RJ45

Power

Power Input9.6~60VDC/24VAC (18~30 VAC)

Electrical Specification

Power consumption (Typ.)5W

Physical Characteristic

EnclosureIP-40
Dimensions (mm)43.5 × 103 × 64 mm
Weight (g)195.5g

Environmental

Storage Temperature-40 to 85°C (-40 to 185°F)
Operating Temperature-40 to 75°C (-40 to 167°F)
Operating Humidity5% to 95% Non-condensing

Warranty

Warranty5 years

Downloads

DatasheetVersionChecksumRelease DateRelease NoteSize
IGS-C1080-L DatasheetJune 24, 2026613.85 kB

Regulatory Approvals

EMCCE EMC (EN 55035, EN 55032), FCC Part 15B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSEN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF)
ShockIEC 60068-2-27
Free FallIEC 60068-2-31
VibrationIEC 60068-2-6
SafetyEN 62368-1,UL 61010-1, UL 61010-2-201
MTBF463524 hrs

Dimensions
