Description

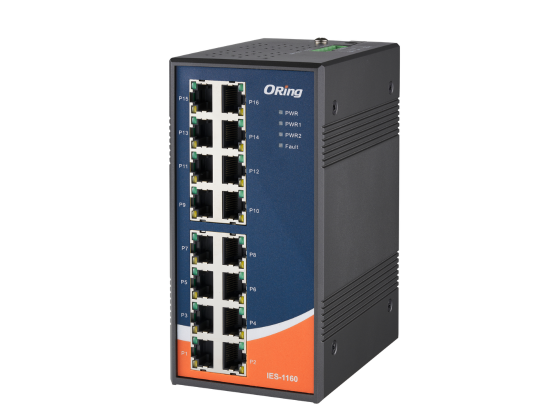

IES-1160 is the unmanaged Ethernet switch with 16x 10/100Base-T(X) port. IES-1160 support redundant power inputs, relay output alarm, and surge protection. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environments. Especially, IES-1160 features dual different redundant DC power inputs, two DC power inputs are on terminal block to avoid any unexpected fails on power on. Thus, IES-1160 could guarantee a non-stop operation. Therefore, the switch is one of the most reliable choice for highly-unmanaged Ethernet application.
Features
- Provides Store-and-Forward switching architecture
- Provides 3.2Gbps Back-plane (Switching Fabric)
- Warning system by relay output
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Industrial 16-port unmanaged Ethernet switch with 16x10/100Base-T(X)
Physical ports |
|---|
| 10/100Base-T(X) ports in RJ45 | 16 |
LED Indicators |
|---|
| Power Indicator (Power) | Green : Power LED x 3 |
| Fault Indicator (Fault) | Amber : Indicate power failed warning |
| 10/100Base-T(X) RJ45 Port Indicator | Upper for link/Act indicator, Green for port Link/Act.
Lower for duplex/Collision indicator, Amber for Full duplex, OFF for half duplex, blink for collision. |
Power |
|---|
| Power consumption (Typ.) | 15 Watts |
| Redundant Input power | Dual DC inputs 12 ~ 48VDC on 6-pin terminal block |
| Overload current protection | Present |
| Reverse polarity protection | Present |
Technology |
|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control |
| MAC Table | 8192 |
| Packet buffer Size | 1M bits |
| Switch Properties | Switching latency andwidth: 3.2Gbps |
Environmental |
|---|
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
Downloads |
|---|
| Datasheet | Version | Checksum | Release Date | Release Note | Size |
|---|
| IES-1160 Datasheet | | | July 06, 2023 | | 1.03 MB |
|
Regulatory Approvals |
|---|
| EMC | CE EMC (EN 55035, EN 55032), FCC Part 15B |
| EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A |
| EMS | EN 55035 (IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT), IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF) |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| Safety | EN 62368-1, UL 61010-1, UL61010-2-201 |
| MTBF | 1,160,204 hrs |
Dimensions |
|---|
 |
ORing offers a comprehensive portfolio of rugged industrial Ethernet switches, from cost-effective unmanaged and PoE models to advanced Layer 2/3 managed switches enabling precise control. Our switches can address connectivity needs in a variety of vertical markets.
