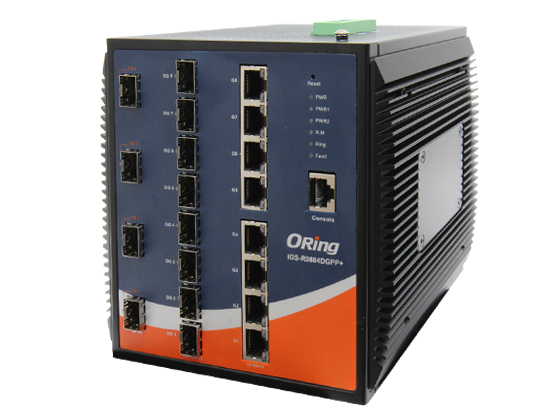

IGS-R9884DGPP+

Industrial 20-port L3 Managed Switch, 8GE + 8x 2.5G SFP + 4x 10G SFP+


Description

IGS-R9884DGPP+ is a Layer 3 managed industrial Ethernet switch with 20 ports: 8x 10/100/1000Base-T(X) RJ45, 8x 100/1000/2500Base-X SFP slots, and 4x 1G/10GBase-X SFP+ slots. Its 136 Gbps switching capacity supports all 20 ports at full line rate, so the four 10G SFP+ uplinks can aggregate traffic from the 2.5G and Gigabit ports without becoming a bottleneck.

Layer 3 functions include static routing, RIP v2, and VRRP, allowing the switch to route between VLANs and provide gateway redundancy at the aggregation layer. For Layer 2 redundancy, O-Ring recovers in under 30 ms in rings of up to 250 switches, O-Chain joins multiple rings into one topology, and MSTP (RSTP/STP compatible) and IEC 62439-2 MRP* ensure interoperability with third-party networks.

The switch runs on dual redundant 12–48 VDC power inputs, operates from -20 to 60°C in an IP30 housing, and can be managed via web interface, CLI, SNMP, or ORing’s Open-Vision utility.

*MRP is available on request.

Features

  • Static routing and RIP v2 for IPv4
  • VRRP for default gateway redundancy
  • O-Ring: < 30 ms recovery, up to 250 switches per ring
  • O-Chain: connects multiple redundant rings into one topology
  • MSTP (RSTP/STP compatible)
  • 136 Gbps switching capacity, 32K MAC table, 32 Mbit packet buffer
  • 8 priority queues with 802.1p, ToS/DiffServ, and application-based QoS (by TCP/UDP port)
  • IP-based bandwidth management for per-device bandwidth limits
  • IGMP v2/v3 snooping, up to 256 multicast groups per VLAN
  • Jumbo frames up to 9K bytes
  • 802.1X and RADIUS authentication, ACL, IP source guard
  • Device Binding: allows network access only to approved IP-MAC pairs
  • Hardware-based DoS/DDoS prevention: automatically blocks source IPs with abnormal traffic
  • HTTPS, SSH, and SNMPv3 for encrypted management
  • Web, Telnet, CLI, SNMP v1/v2c/v3, RMON, and Open-Vision utility
  • LLDP, port mirroring, Modbus TCP, DHCP server/client/relay
  • Event alerts via SMTP, SNMP trap, and relay output
  • Configuration backup and restore with DBU-01
  • Dual redundant 12–48 VDC inputs, reverse polarity protection
  • -20 to 60°C operating temperature, IP30 housing
  • DIN-rail and wall mounting

Physical ports

Total Ethernet Ports20
Gigabit Ethernet Ports8 x 10/100/1000Base-T(X) RJ45
2.5G Ethernet Ports8 x 1000/2500Base-X SFP
10G SFP+ Ports4 x 1000/10GBase-X SFP+

Downloads

DatasheetVersionChecksumRelease DateRelease NoteSize
DataSheet_IGS-R9884DGPP+December 27, 2024464.39 kB

UserManualVersionChecksumRelease DateRelease NoteSize
Firmware S12.x Function Manualv1.2August 22, 20254.01 MB

Dimensions
