IGPS-R9084GP
8GE PoE + 4G SFP L3 Managed Ethernet Switch, IEEE 802.3af/at
Description
IGPS-R9084GP is Layer-3 managed redundant ring PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports. The IGPS-R9084GP supports Layer-3 routing for better network performance on large-scale LANs into multiple subnets to support long-haul and EMI immunity communications. The hardware Layer-3 switch is optimized to transmit data as fast as Layer-2 switches. The switch support Ethernet redundancy protocol, O-Ring and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
IGPS-R9084GP also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-R9084GP switch support wide operating temperature from -40°C to 75°C. IGPS-R9084GP can also be managed centralized and convenient by Open-Vision, Except the web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Ethernet application.
Features
- Supports Layer 3 routing, RIP and static routing
- Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings
- Support standard IEC 62439-2 MRP (Media Redundancy Protocol)
- 8 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
- Support PoE scheduled configuration and PoE auto-ping check function
- Support IEEE 1588v2 clock synchronization
- Support IPV6 new internet protocol version
- Support Modbus TCP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Provided HTTPS/SSH protocol to enhance network security
IGPS-R9084GP
Industrial Layer-3 12-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 4x100/1000Base-X, SFP socket
Physical ports | |
|---|---|
| PoE P.D. Port | 8 |
| Console | RS232 to RJ45 console port |
| 10/100/1000Base-T(X) ports with P.S.E. in RJ45 | 8 |
| 100/1000Base-X with SFP port | 4 |
LED Indicators | |
|---|---|
| Power Indicator (Power) | Green: Power LED x 3 |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45 port indicator | Link/ACT: Light with Green for 1000Mbps Link indicator. Blinking with Green for act (data transmitted) Light with Amber for 10/100Mbps Link indicator. Blinking with Amber for 10/100Mbps for act (data transmitted) |
| 100/1000Base-X SFP Port Indicator | Link/ACT: Light with Green for Link indicator. Blinking with Green for act (data transmitted) |
| PoE Indicator | Green: Indicates that PoE port has PoE power output |
Power | |
|---|---|
| Power consumption (Typ.) | 19 Watts without any PoE power output |
| PoE Output Power | Per PoE port up to max. 30 watts |
| Redundant Input power | Dual DC inputs. 50~57VDC (6-pin removeable terminal block, power input 1: pin 1 and 2, power input 2: pin 5 and 6,): IEEE 802.3af PoE output @ 50~57VDC input, IEEE 802.3at PoE+ output @ 52~57VDC input, |
| Total PoE Output Power | 240 Watts (Max.), per PoE port up to max. 30 watts |
| Overload current protection | Present |
| Reverse polarity protection | No present |
Physical Characteristic | |
|---|---|
| Enclosure | IP-30 |
| Dimensions (mm) | 96.4 x 145.5 x 154 mm (3.8 x 5.73 x 6.06 inch) |
| Weight (g) | 1560g |
Technology | |
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for CoS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.3af/at PoE+ specification (up to 30 Watts per port for P.S.E.) |
| MAC Table | 8K |
| Packet buffer Size | 32Mbits |
| Priority Queues | 8, supports traffic classification based, strict and DWRR schedule mode |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 24Gbps Throughput (packet per second) : 17.85Mpps@64Bytes packet Max. Number of Available VLANs: 256 (ID Range : VID 1 to 4095) Port rate limiting: User Define |
| Jumbo frame | Up to 9K Bytes |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) Single 802.1x and Multiple 802.1x MAC-based authentication QoS assignment Guest VLAN MAC address limit TACACS+ VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Web and CLI authentication and authorization Authorization (15 levels) Per port MAC limit control Access Control List DHCP Snooping |
| Software Features | Hardware routing, RIP and static routing IEEE 1588v2 clock synchronization IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) VLAN (802.1Q) with VLAN tagging Voice VLAN IGMP v2/v3 Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/snooping DHCP Relay Modbus TCP DNS client proxy ARP inspection SMTP Client NTP Server |
| Network Redundancy | O-Ring O-Chain Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units MSTP (RSTP/STP compatible) Multiple Registration Protocol (MRP) G.8032 ERPS |
| Warning / Monitoring System | Syslog, system log, cable diagnostic, SFP transceiver DDM, CPU utilization |
Fault contact | |
|---|---|
| Relay | Relay output to carry capacity of 1A at 24VDC (pin 3 and 4 for 6-pin removeable terminal block) |
Reset Function | |
|---|---|
| Reset Button | less than 5 sec: System reboot, greater than 5 sec: Factory default |
Environmental | |
|---|---|
| Storage Temperature | -40 to 85 degrees C (-40 to 185 degrees F) |
| Operating Temperature | -40 to 75 degrees C (-40 to 167 degrees F) |
| Operating Humidity | 5% to 95% Non-condensing |
Warranty | |
|---|---|
| Warranty | 5 years |
Downloads |
| ||||
|---|---|---|---|---|---|
Regulatory Approvals | ||
|---|---|---|
| EMI | FCC Part 15, CISPR (EN55022) class A | |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 | |
| Shock | IEC 60068-2-27 | |
| Free Fall | IEC 60068-2-31 | |
| Vibration | IEC 60068-2-6 | |
| MTBF | 269005.1657hrs @ 25 degress C (77 degress F) | |

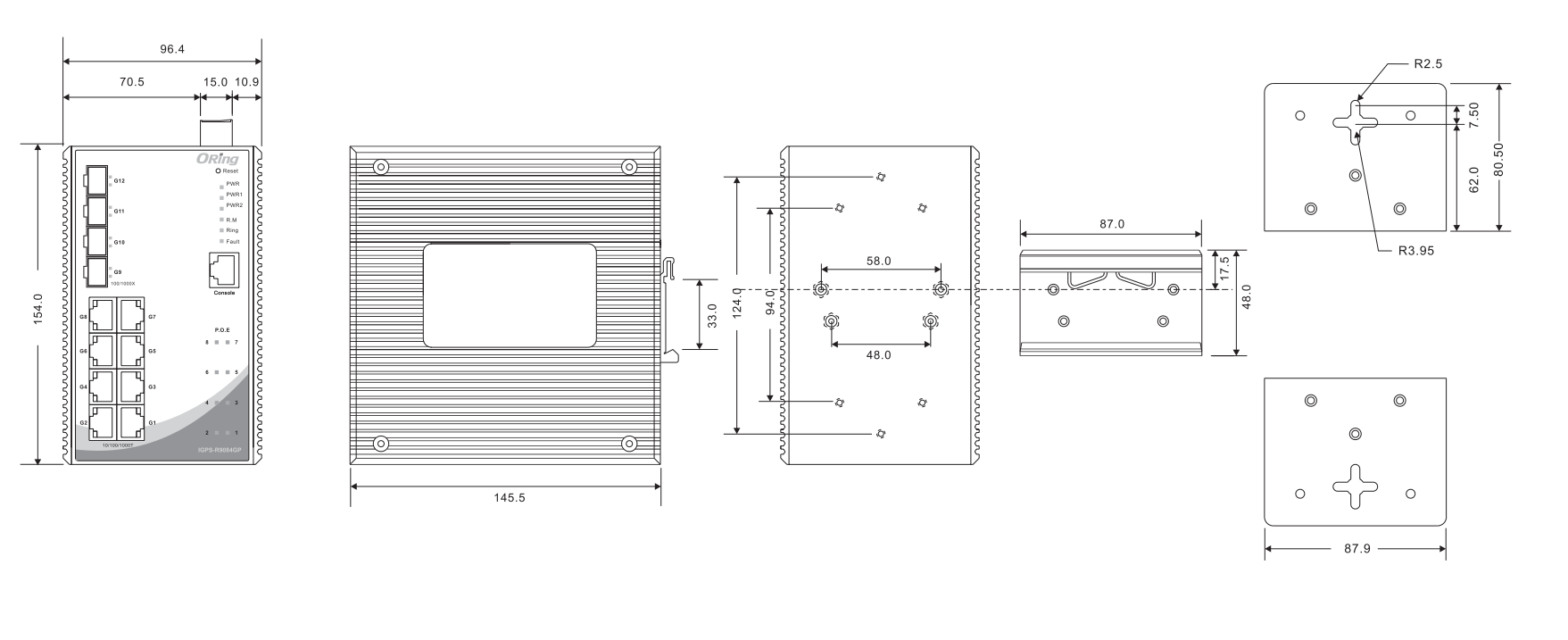

Dimensions |  |
|---|
